In Cab engine assembly

Well, my truck had the head gaskets go so I decided to take on the job of repairing the truck myself. I did not take many pictures of the removal as I was trying to get to the heads quickly and send them off to the shop for repair.

So being fairly new to working on diesels and not wanting to mess this up, I'm going to take it slow, post some pictures of my progress and hopefully get some advice along the way.

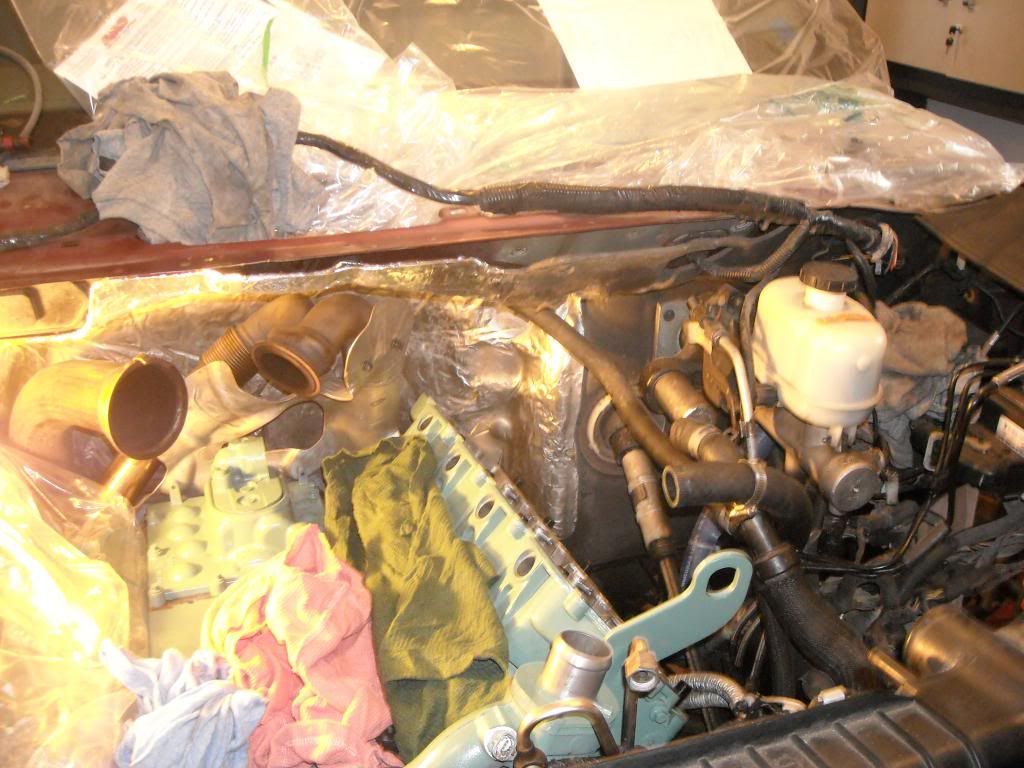

So far this is what my truck looks like.

http://www.thedieselstop.com/forums/...dscn1067-2.jpg

And the engine bay

http://www.thedieselstop.com/forums/...dscn1059-2.jpg

I hope I'm not in over my head.
tom135 is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 01-13-2013, 05:53 AM   #2 (permalink)
Member

Join Date: Apr 2010
Posts: 54
My Photos: (0)
Feedback Score: 0 reviews

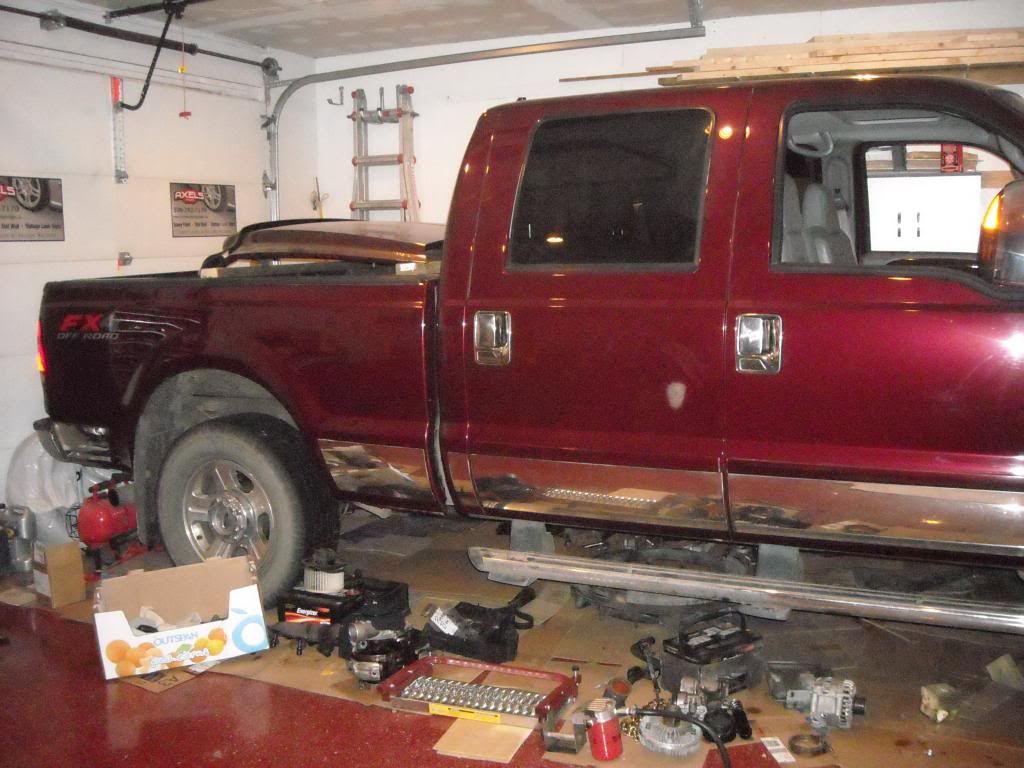

a picture of the parts littering the floor.
tom135 is offline   Reply With Quote Quick reply to this message
Old 01-13-2013, 06:58 AM   #3 (permalink)
Senior Member

Band_Member's Avatar

Join Date: Mar 2007
Location: East Hampton, NY
Posts: 1,104
My Photos: (64)
Feedback Score: 0 reviews
Seems like you have a nice shop set up there. How did you deal with getting the rear head bolts off ? Seems to be one of the biggest issues to deal with.
__________________
2005 F250 XLT SC, LB
6.0 Torqueshift 3.73LS 4x4 T/C
Trk Bld: 02/05/05 KY
Eng Bld: 02/03/05 Indianapolis
2745 Hrs +/-, 97K Miles - No Major Probs
DC Power 185 Alternator
ZOODAD, SEIC,
Atlas 40 FICM @ 90K
4" Banks Turbo-Back Duals
3.5" Ready Lift
Bilstein 5100's
315 - 70R17 Duratrac's
Centramatics
Bodiak Front Receiver
SG2
Coolant Filter
HFCM Plug Upgrade
Blue Spring Upgrade
FP Gauge
Zerex Red ELC
2 Stroke TC-3W Oil added 1oz/Gallon Fuel
Band_Member is offline   Reply With Quote Quick reply to this message
Old 01-13-2013, 12:41 PM   #4 (permalink)
OT
Senior Member

OT's Avatar

Join Date: Mar 2003
Location: Sparks, Nevada
Posts: 4,323
My Photos: (8)
Feedback Score: 0 reviews
Tom..you didn't say what yr/miles? Point is...due to easy access now, are you planning on changing/upgrading other parts? Best guess is, you've had prior wrenching experience even if diesel limited.

Parts of floor look familiar, except my pile was alot higher. Tec. took most of front end off mine to do h.g. etc.(under warr.) for easier access. That's how done at the time, today don't know? Anyhow, tks. & good luck on you project.

btw..you may have seen, but some good reports here on DIY h.g. install etc. Use search if needed.
__________________
03 F250 XLT SC/SB 4X4 6L (stock) TqS. SRW 3.73's BD:02/11/03. 01 TL 23' SGII
OT is offline   Reply With Quote Quick reply to this message
Old 01-13-2013, 01:40 PM   #5 (permalink)
Member

Join Date: Apr 2010
Posts: 54
My Photos: (0)
Feedback Score: 0 reviews
Quote:
Originally Posted by Band_Member View Post
Seems like you have a nice shop set up there. How did you deal with getting the rear head bolts off ? Seems to be one of the biggest issues to deal with.
Thanks, I live in North Eastern Canada so I'm just really happy I have heat. I did a lot of reading on this site and others to figure out how to tackle to rear bolts. For the Drivers rear lower I purchased the snap on tool P/N SRD35 torque adapter. Worked very slick, worth it's weight in gold. The Passenger side I found quite difficult. With the heater box in I could not remove 4 of the bolts. I ended up removing the fender wells to gain access and see how to split the heater box and move the condenser out of the way. I did not want to open my AC and cause more problems for myself. Once the box was split, condenser moved out, then all the bolts were easily accessible.

Quote:
Originally Posted by OT View Post
Tom..you didn't say what yr/miles? Point is...due to easy access now, are you planning on changing/upgrading other parts? Best guess is, you've had prior wrenching experience even if diesel limited.

Parts of floor look familiar, except my pile was alot higher. Tec. took most of front end off mine to do h.g. etc.(under warr.) for easier access. That's how done at the time, today don't know? Anyhow, tks. & good luck on you project.

btw..you may have seen, but some good reports here on DIY h.g. install etc. Use search if needed.
The truck is a 2006 with 125,000 miles. Funny thing is I have had this truck for about 100,000 miles and it has been babied the whole time, and here I am ripping it apart for a blown gasket.

My plan is to upgrade anything/repair as money permits. There is a lot of space now, and I do not want to go back in. So far my list includes ARP head studs, updated dummy plugs and standpipes, updated STC fitting, Fumoto coolant drain valves, coolant filter, EGR delete. I know there is more, I just can not remember.

I have a small bit of experience on gassers and motorcycles, this is the biggest project I have taken on. I just hope this truck starts up when I'm done

I tried to organize the parts as I took them off. As parts are cleaned, inspected and refinished, I bag them and find a safe spot, like the truck bed.
tom135 is offline   Reply With Quote Quick reply to this message
Old 01-13-2013, 01:58 PM   #6 (permalink)
Member

Join Date: Apr 2010
Posts: 54
My Photos: (0)
Feedback Score: 0 reviews
Today was the start of cleaning, prepping and painting of some parts.

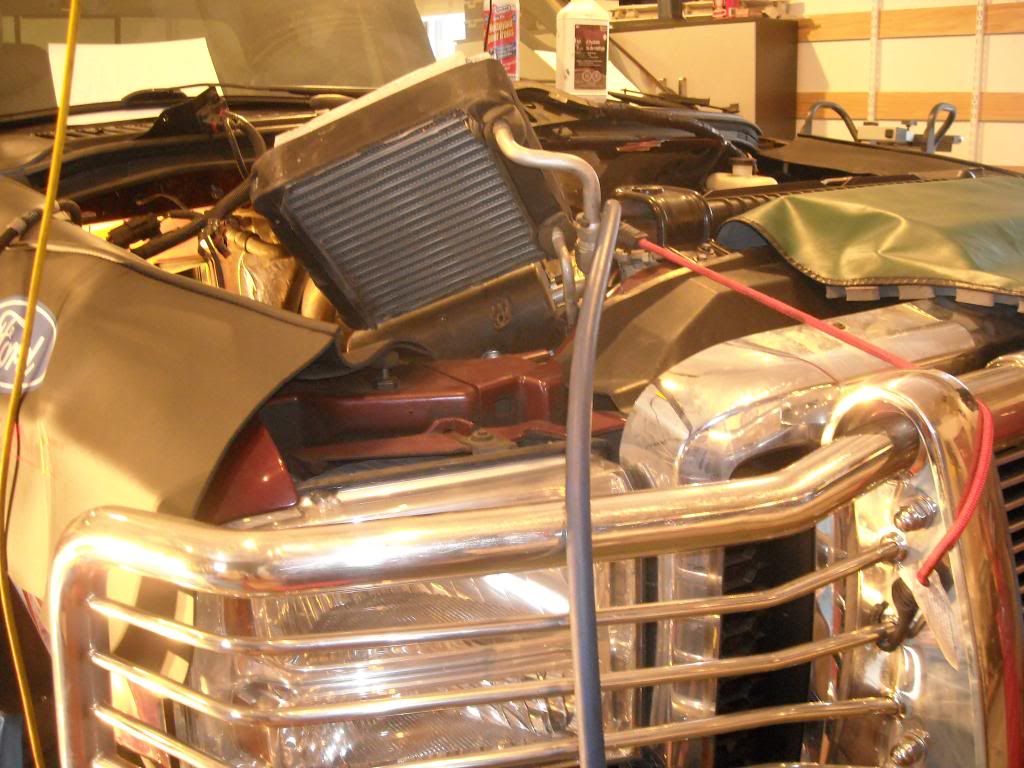

Here is a picture of the AC unit moved to allow for access.


Engine cleaned and ready for a little paint.
http://i1278.photobucket.com/albums/...ps3c791a0d.jpg

A picture of the frame painted. I used a rust converter the a rust encapsulator from Eastwood, seemed like a good product, will be hitting it with some undercoating.

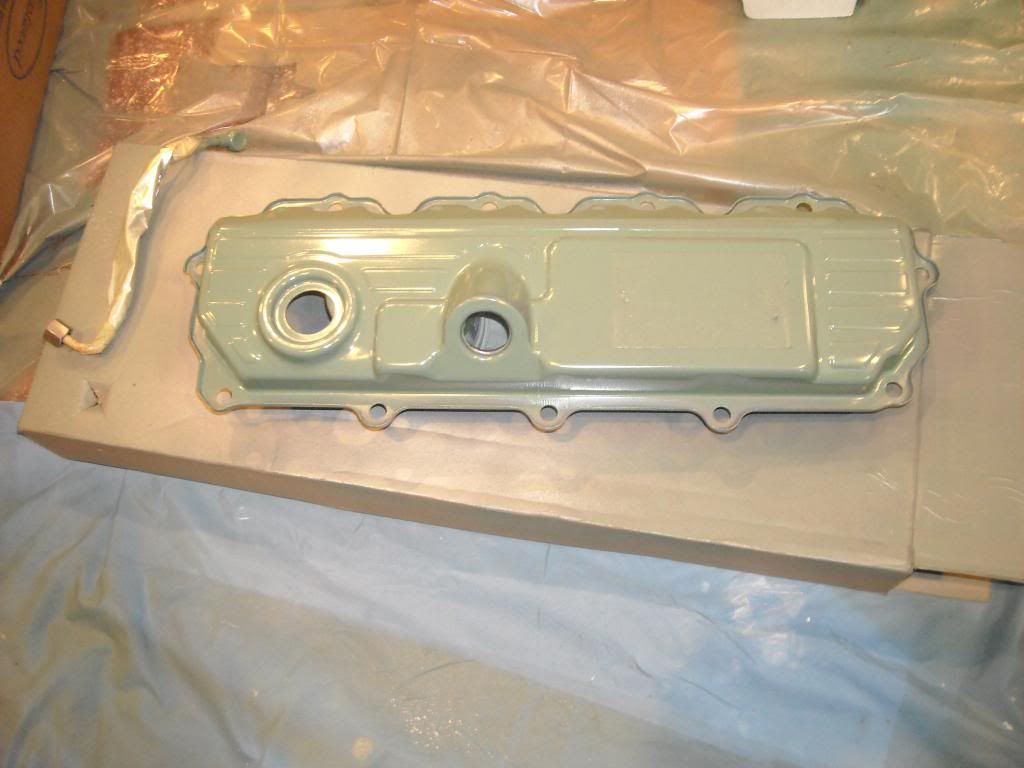

Painted valve cover. Going with Dupli-color Detroit Diesel Alpine green.

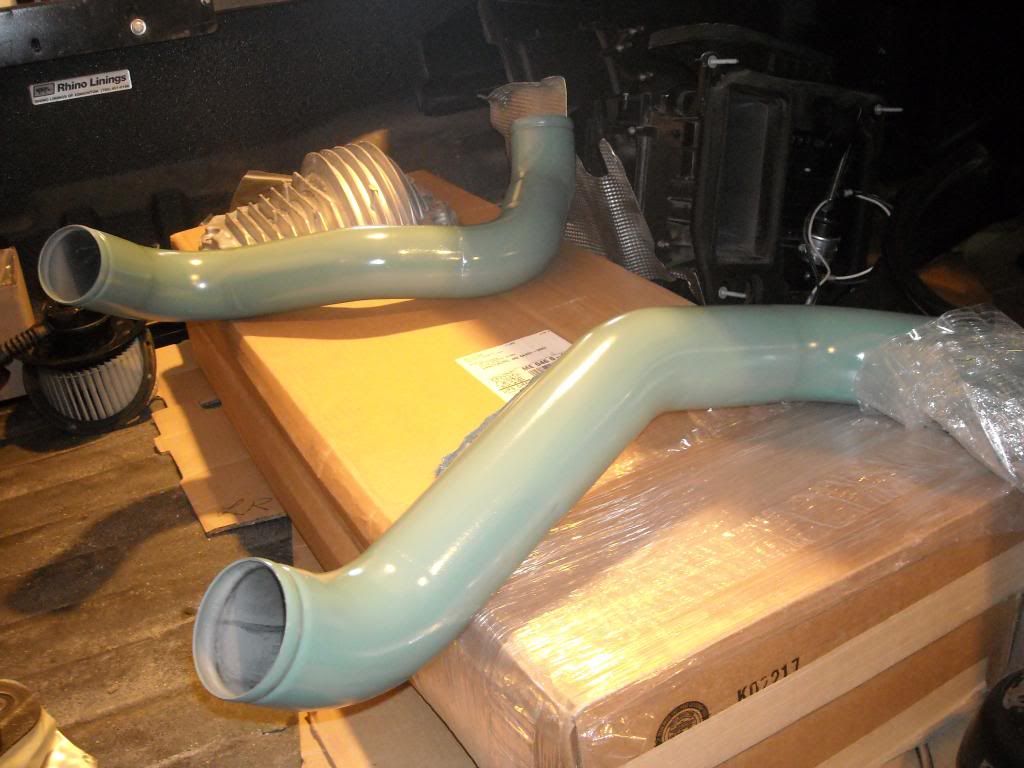

Upgraded from plastic CAC tube to metal


My heads are still out, I hope to get them back next week.
tom135 is offline   Reply With Quote Quick reply to this message
Old 01-14-2013, 08:26 AM   #7 (permalink)
Senior Member

Join Date: Nov 2003
Location: British Columbia, Canada
Posts: 261
My Photos: (0)
Feedback Score: 0 reviews
That thing is going to look marveloius when you are finished, nice to see this kind of thing being done. Didn't read your post that closely but I hope you are replacing the oil cooler at the same time. Mine was done by a shop which did the cab-off procedure and it all turned out well, good luck with yours.
baddna is online now   Reply With Quote Quick reply to this message
Old 01-14-2013, 11:40 AM   #8 (permalink)
Senior Member

fordsforever73's Avatar

Join Date: Nov 2006
Location: Northern BC, Canada
Posts: 2,033
My Photos: (25)
Feedback Score: 2 reviews
Nice job you're doing there. I did the same job, replacing head gaskets and leaving the cab on. It was quite the experience and I'm glad I took it on. It took some thought and ingenuity to get it right and in the end (ya, some "hiccups") it worked out awesome. I too took many pictures for reference and I wrote down things, as I went along. Good luck with your truck, it's looking great so far.
__________________
2005 F-350 CC, LB, 4x4, Dually, 6.0 Powerstroke, Torqueshift, 4:10 Gears. Gooseneck and rear pull hitches. "Truck Covers USA" roll up aluminum tonneau cover. Putco Boss Running Boards. Aluminum finned diff covers. Bilstein HD shocks. ProComp steering stabilizer. XRF ball joints. NC Hornet CCV mod. RCD egr delete kit. AirDog fuel system. Strictly Diesel's regulated fuel and coolant return lines kits. Amsoil oil bypass (by NUC Motorsports) and homebuilt coolant bypass kits. CFM intake elbow. ARP head studs with factory gaskets and all upgrades. FICM by Ed with Atlas 40 tune, DC Power 185 amp alternator, MBRP 304SS "Cool Dual" exhaust system. SCT Livewire tuner with pyrometer. Autometer 'A' pillar gauges (Boost/Trans temp/Pyrometer/Fuel Pressure). 850 CCA Motorcraft Batteries. Using Rotella T-6 synthetic oil. Upgraded degas tank and cap. Hayes deep aluminum trans pan. GoGo Diesel modified direct clutch solenoid. Retro Solutions HID head and fog lights. High idle mod. Jimmi-Jammers. +More.
fordsforever73 is offline   Reply With Quote Quick reply to this message
Old 01-14-2013, 10:24 PM   #9 (permalink)
Senior Member

Join Date: Apr 1999
Location: Justin,Texas, Republic of TEXAS (USA)
Posts: 4,491
My Photos: (1)
Feedback Score: 0 reviews
Turn engine over by hand several revolutions with injectors out after rockers and all valve train is in place. Lifters can extend and not compress when stationary and you can bend pushrods cranking it over. Turning engine over a few turns will let lifters settle and you're good to go.
This is one of the most common reasons to get really frustrated and angry after HG job on a 6.0.
__________________
Don't tell my cattle I got leather seats!
2006 F450 CC Hauler bed 4x2 6.0 L Pstroke/Torqshift, Lariat, 4.30 r/a, SCT, 4in exhaust. 94 K
2006 F350 Lariat CC Dually 4X2, 6.0 TorqShift 4.10 LS, SCT, airbags, 4 in. exhaust. 147K
36 feet on the floor Elite/Outlaw LQ horse trailer.
36 foot double tandem axle flatbed trailer.
36 foot Sooner 6 horse large dressing/ mid tack.
2003 EB Expedition 141K
2004 Volvo V70R AWD-high miler in fleet, 205K
jimmy is offline   Reply With Quote Quick reply to this message
Old 01-15-2013, 09:52 AM   #10 (permalink)
OT
Senior Member

OT's Avatar

Join Date: Mar 2003
Location: Sparks, Nevada
Posts: 4,323
My Photos: (8)
Feedback Score: 0 reviews
T....Curious, prior to teardown, what were symptoms indicating bad h.g.? Did both blow or just one? Tks. for update & looking good (so far).
__________________
03 F250 XLT SC/SB 4X4 6L (stock) TqS. SRW 3.73's BD:02/11/03. 01 TL 23' SGII
OT is offline   Reply With Quote Quick reply to this message
Old 01-16-2013, 09:31 AM   #11 (permalink)
Member

Join Date: Apr 2010
Posts: 54
My Photos: (0)
Feedback Score: 0 reviews
Quote:
Originally Posted by baddna View Post
That thing is going to look marveloius when you are finished, nice to see this kind of thing being done. Didn't read your post that closely but I hope you are replacing the oil cooler at the same time. Mine was done by a shop which did the cab-off procedure and it all turned out well, good luck with yours.
Thanks, I will be replacing the oil cooler with a new one, I made sure to do a coolant flush before I started to tear into the engine.

Quote:
Originally Posted by fordsforever73 View Post
Nice job you're doing there. I did the same job, replacing head gaskets and leaving the cab on. It was quite the experience and I'm glad I took it on. It took some thought and ingenuity to get it right and in the end (ya, some "hiccups") it worked out awesome. I too took many pictures for reference and I wrote down things, as I went along. Good luck with your truck, it's looking great so far.
Thanks, this is definitely a new thing for me, I'm sure there will be bumps along the way. I hope the more organized I am the better.

Quote:
Originally Posted by jimmy View Post
Turn engine over by hand several revolutions with injectors out after rockers and all valve train is in place. Lifters can extend and not compress when stationary and you can bend pushrods cranking it over. Turning engine over a few turns will let lifters settle and you're good to go.
This is one of the most common reasons to get really frustrated and angry after HG job on a 6.0.
Thanks for the tip Jimmy, I will pen this into my build sheet. I have a friend who just recently had Ford do a head gasket job, and he had to take it back in for running rough. Ford replaced the injector, turns out it was a bent pushrod.

Quote:
Originally Posted by OT View Post
T....Curious, prior to teardown, what were symptoms indicating bad h.g.? Did both blow or just one? Tks. for update & looking good (so far).
The only real symptom I had was loss of coolant. When I was towning my trailer the coolant would leave via the degas cap (externally), in the winter I would lose coolant internally, I would catch this whenever I noticed I had no cabin heat. Everything else was good, i.e deltas. When I took off the L/H head the cylinders were dry and clean, when I removed the R/H head coolant came spilling out and the cylinders were full of coolant.

Still waiting on my heads, so I'm cleaning, inspecting and painting in the meantime.

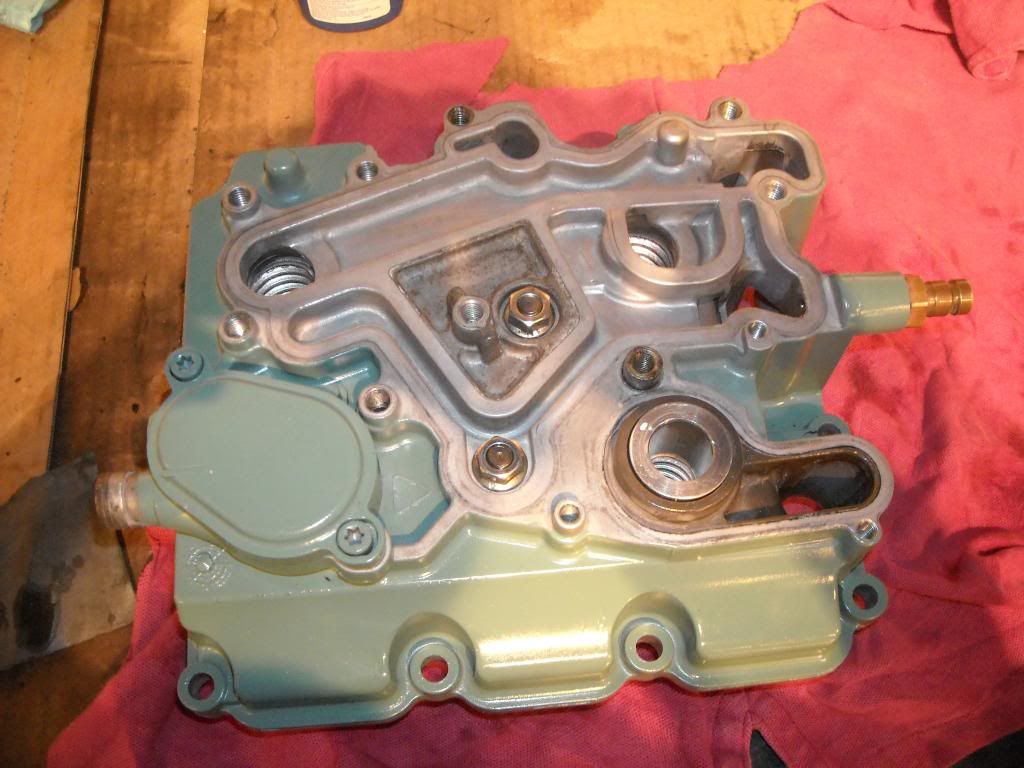

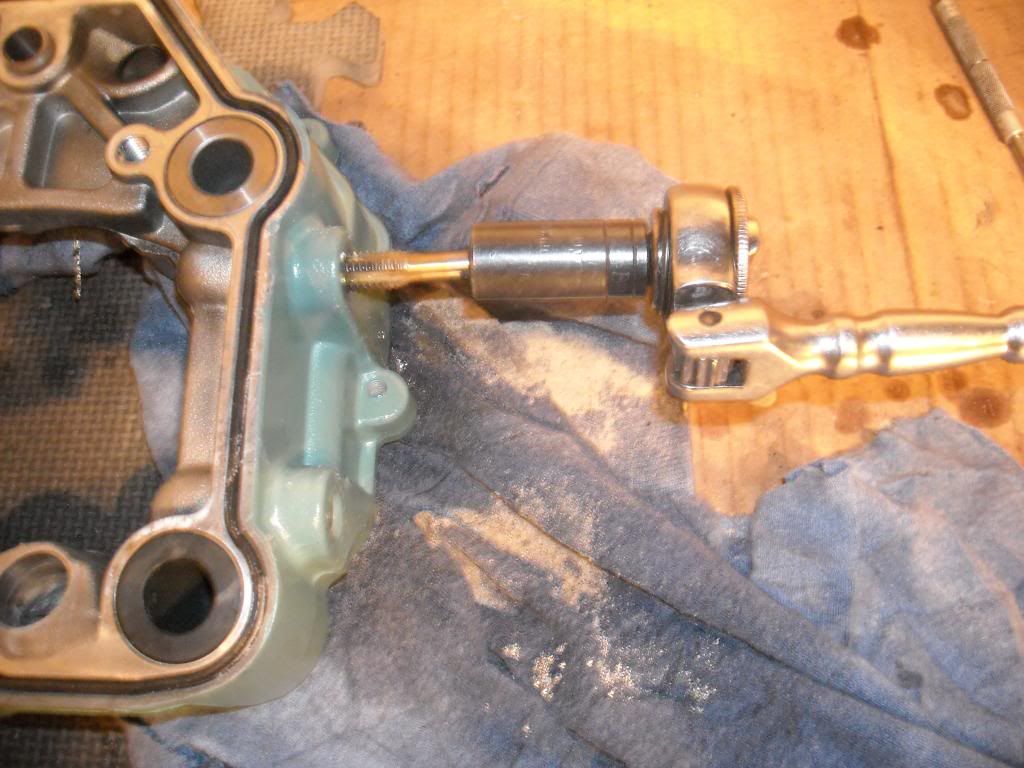

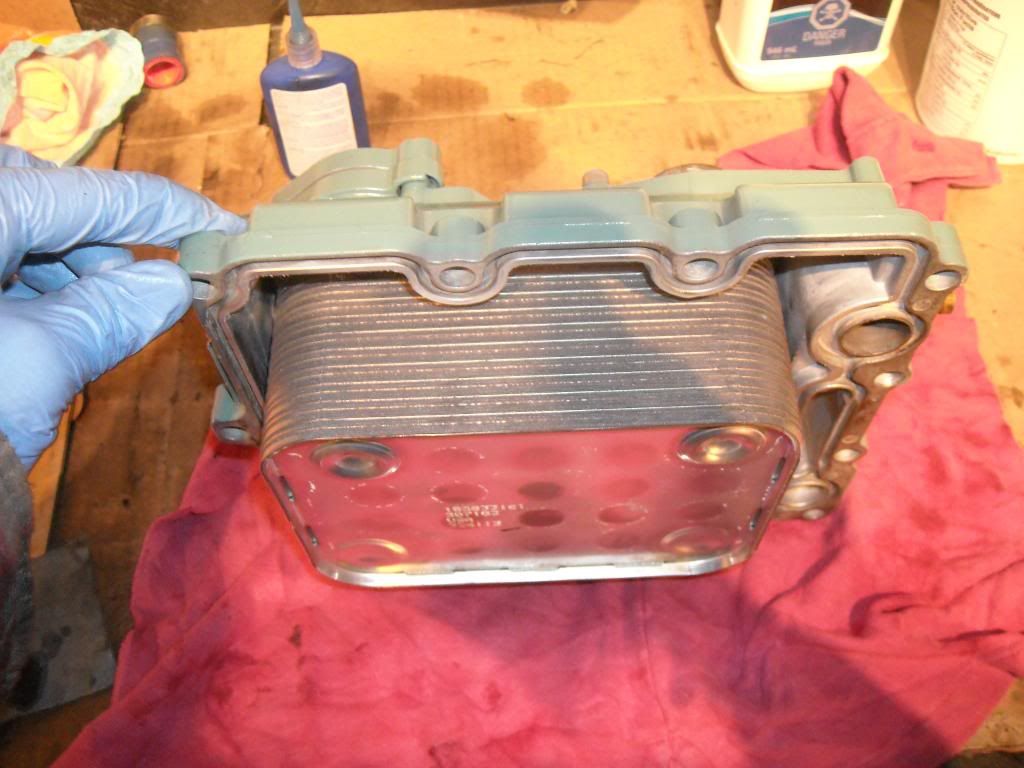

Here are a couple of pictures of my new oil cooler assembled.





Slow going, but still moving forward.
__________________
2006 F-250 SD Lariat,
ARP Studs,
Scan gage II,
Dieselsite coolant filter,
EGR delete,
Scangage2,
one piece STC fitting,
Updated standpipes and dummy plugs,
'03 metal CAC tube,
OEM finned diff cover,
tom135 is offline   Reply With Quote Quick reply to this message
Old 01-16-2013, 01:09 PM   #12 (permalink)
Senior Member

Join Date: Apr 1999
Location: Justin,Texas, Republic of TEXAS (USA)
Posts: 4,491
My Photos: (1)
Feedback Score: 0 reviews
Turn crank so no piston is at TDC when putting heads on. If the lifter extends and doesn't go down as you assemble then the pushrod will bend then. Turning over by hand after heads are on, better if left overnight before turning over, will let them bleed down. If you get to a hard spot stop and go backwards almost two revs and then forward again to see if the hard spot goes away via lifter releasing.
__________________
Don't tell my cattle I got leather seats!
2006 F450 CC Hauler bed 4x2 6.0 L Pstroke/Torqshift, Lariat, 4.30 r/a, SCT, 4in exhaust. 94 K
2006 F350 Lariat CC Dually 4X2, 6.0 TorqShift 4.10 LS, SCT, airbags, 4 in. exhaust. 147K
36 feet on the floor Elite/Outlaw LQ horse trailer.
36 foot double tandem axle flatbed trailer.
36 foot Sooner 6 horse large dressing/ mid tack.
2003 EB Expedition 141K
2004 Volvo V70R AWD-high miler in fleet, 205K
jimmy is offline   Reply With Quote Quick reply to this message
Old 02-17-2013, 04:23 PM   #13 (permalink)
Member

Join Date: Apr 2010
Posts: 54
My Photos: (0)
Feedback Score: 0 reviews

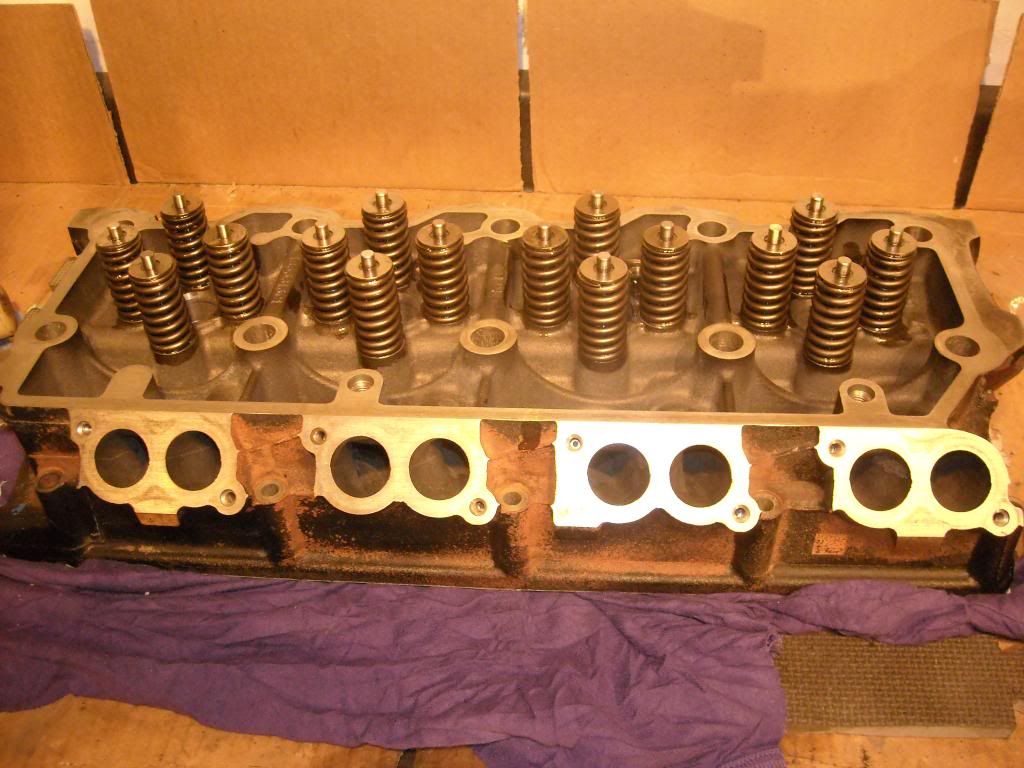

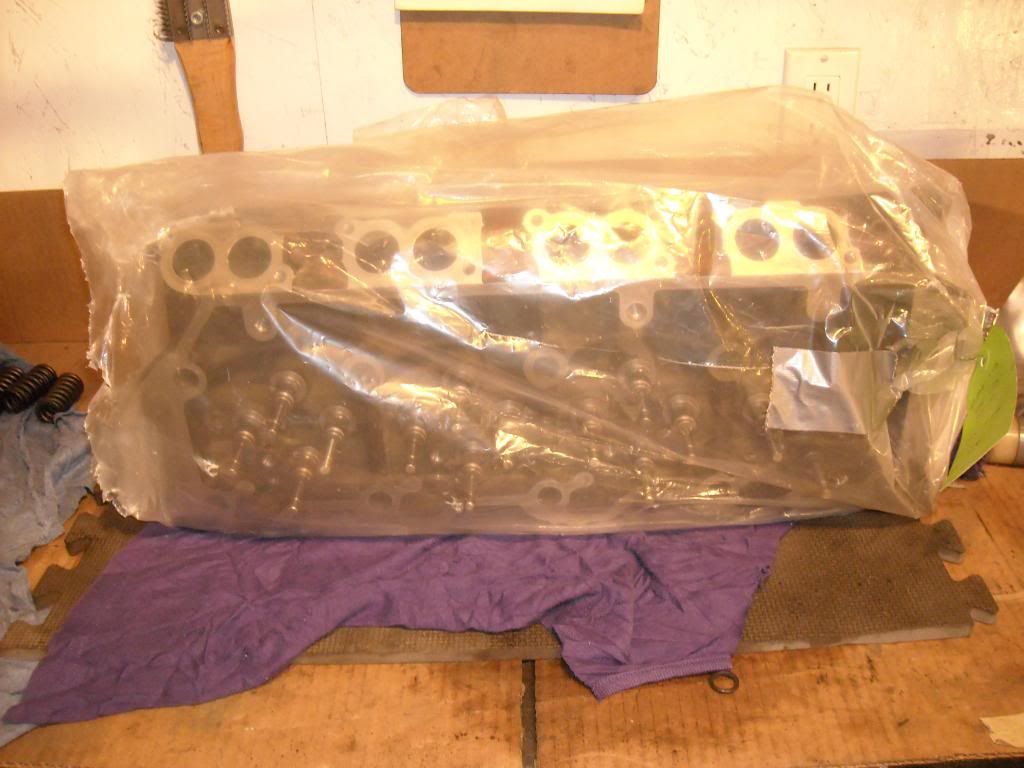

It has been a while, but I have my heads back with new guides, cleaned, machined and a few new valves.

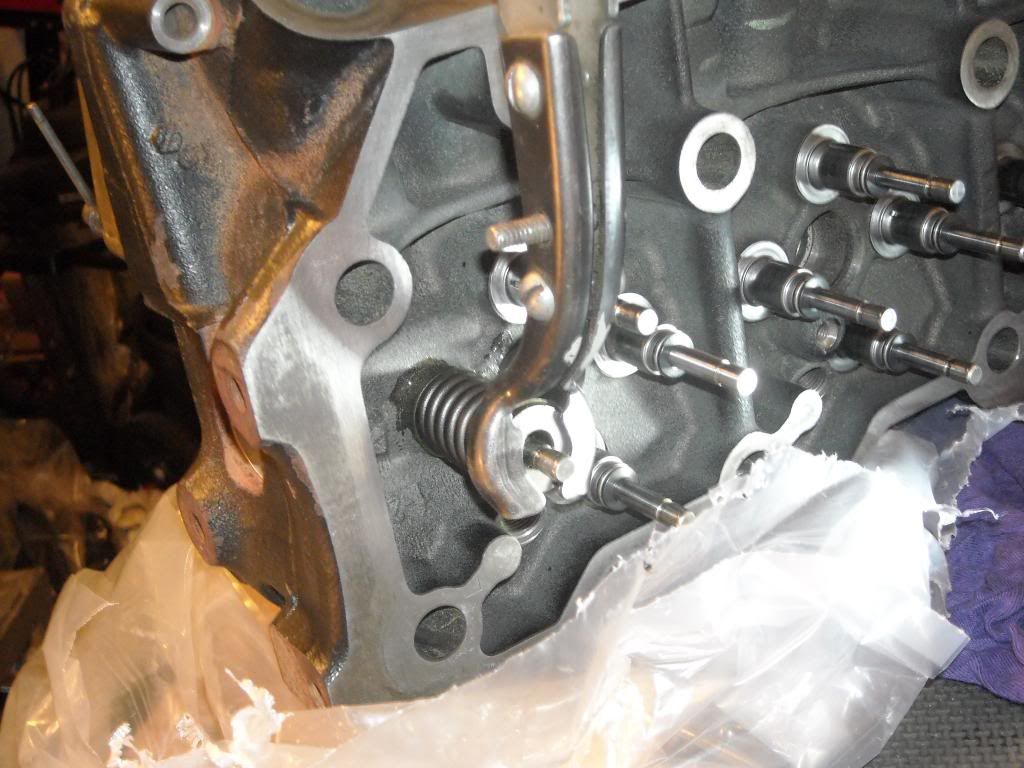

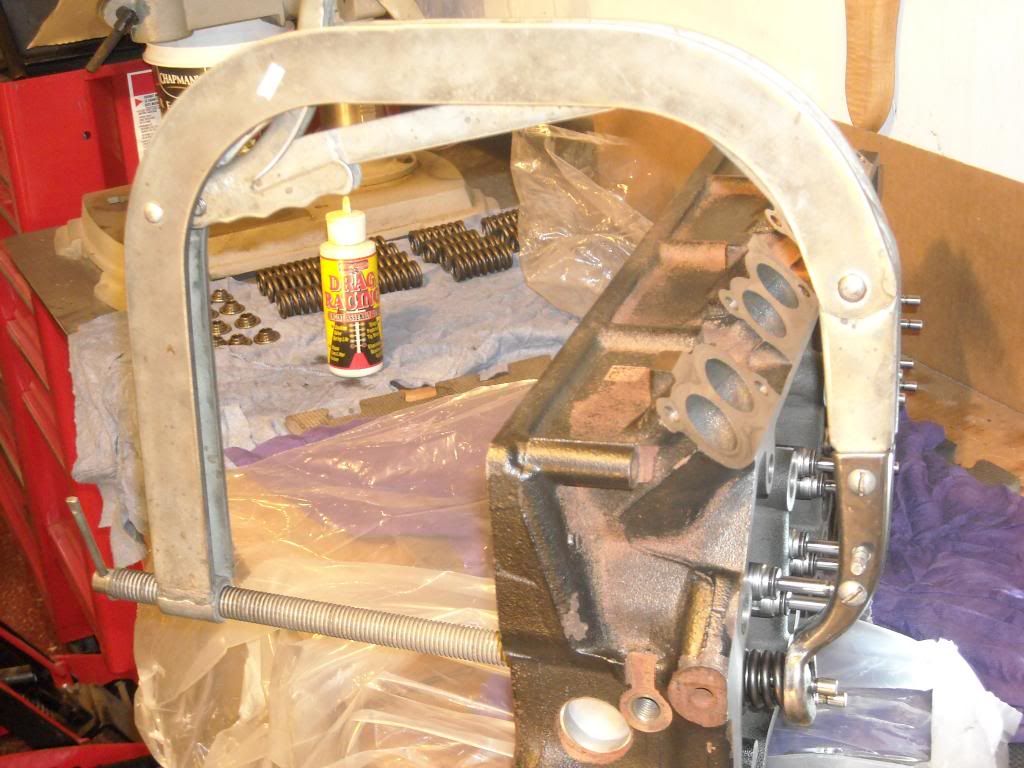

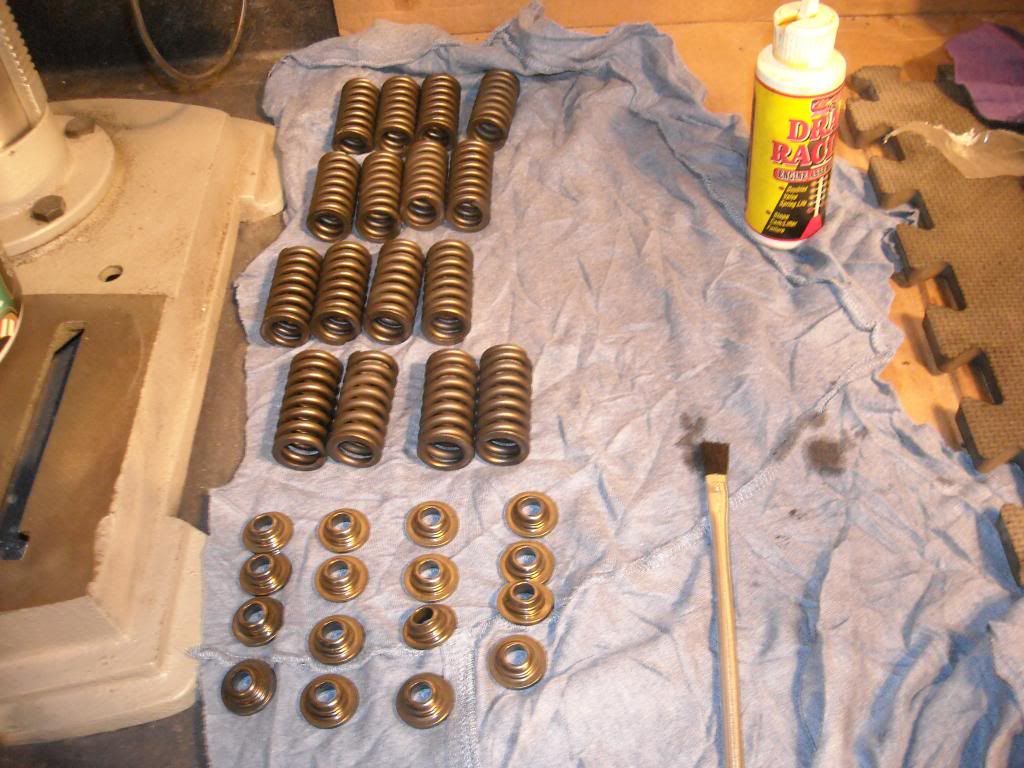

A couple of images throwing on the springs. I used some engine assembly lube during assembly.






Head finished with all of it's valves.

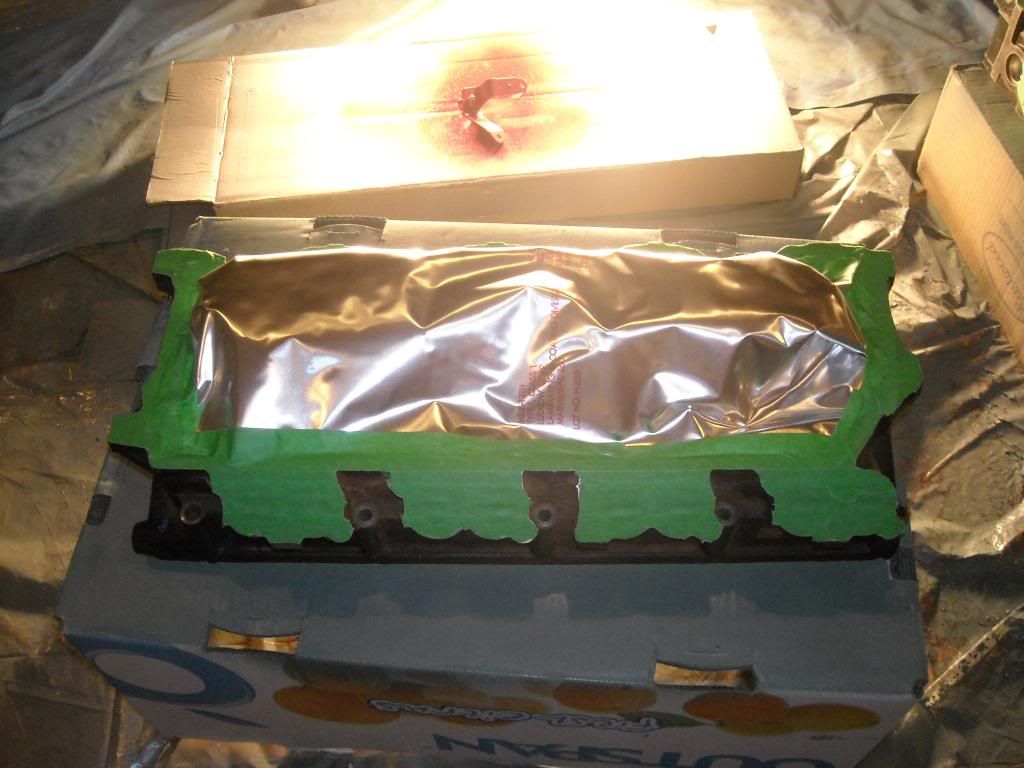

head taped and ready for paint.
.

Tomorrow will be time to install the head.
__________________
2006 F-250 SD Lariat,
ARP Studs,
Scan gage II,
Dieselsite coolant filter,
EGR delete,
Scangage2,
one piece STC fitting,
Updated standpipes and dummy plugs,
'03 metal CAC tube,
OEM finned diff cover,
tom135 is offline   Reply With Quote Quick reply to this message
Old 02-17-2013, 06:34 PM   #14 (permalink)
Senior Member

Join Date: Jul 2007
Location: Delaware
Posts: 3,331
My Photos: (0)
Feedback Score: 0 reviews
Quote:
Originally Posted by jimmy View Post
Turn engine over by hand several revolutions with injectors out after rockers and all valve train is in place. Lifters can extend and not compress when stationary and you can bend pushrods cranking it over. Turning engine over a few turns will let lifters settle and you're good to go.
This is one of the most common reasons to get really frustrated and angry after HG job on a 6.0.
If you look at the front of the damper there is a dowel pin in it. You want that pin in the 6 o'clock position prior to torquing the heads down. This ensures nice even pull down to where the head is fully seated, since you need to torque the rockers prior to the head studs. That's right out of the factory manual. I'd further recommend, as stated, turning the engine thorugh a couple of revolutions once everything is torqued down to the first torque step, like 80lbs/ft. for studs. This way if there's an issue you can deal with it now. If all's good, and it should be, torque them down the rest of the way. I got that advice from bismic, and am glad I did. I've read a lot of posts my guys who bent pushrods, etc. All avoidable, but that one little step gets left out of so many videos and posts.

To spin the engine I made a plate out of 1/8" or 3/16" plate steel (can't remember/didn't measure it just had the scrap laying around, either would suffice) that bolts to the three holes in the damper, then founder center and welded a junk 1/2" drive socket I had laying around to the center. Took maybe an hour to make. Goes into my toolbox in the 6.0 drawer next to my glow plug boot puller and IPR socket, both of which I also made. Also flanked by the 11/16" 12 point deepwell socket I had to buy for the head stud nuts (no one stocks these here in DE, had to order this) and the 12mm Allen key socket I needed for the stand pipes & dummy plugs (Pep Boys had this, I was freaking amazed).
__________________
'06 F250 4x4 - 5" Flo Pro exhaust, SB Filter intake, Accufab elbow, Edge Evolution (monitoring only), SCT w/ ID custom tune, FASS 195 pump, Gillette Diesel EGR cooler delete, Sinister Diesel coolant filter, ELC coolant, updated turbo drain tube/oil feed line/STC fitting/oil cooler, ARPs w/OEM HGs, Elite coolant lines, ITP RR fuel system, Warren Diesel 175cc injectors, Powermax, BD CCV, FICM.com FICM w/ ID tune, Elite UP, BPD water pump - 13.069 @ 101.94

'02 WRX - Outback rear disc swap, EBC green pads, DBA pillar vane rotors, TXS UP/TBE/TMIC, Perrin LW crank pulley, PPG billet steel shift forks, ACT Streetlite flywheel & clutch, K&N filter, STi Group N motor/trans mounts, TiC/Kartboy rear diff mounts/subframe lock bolts/outrigger stiffeners, Kartboy SS & all shifter bushings, custom PDX tune for Cobb AP - went 14.1 on a terrible 60ft before most of these mods; shooting for 13.50s
TKOPerformance is offline   Reply With Quote Quick reply to this message
Old 02-18-2013, 07:17 PM   #15 (permalink)
Member

Join Date: Apr 2010
Posts: 54
My Photos: (0)
Feedback Score: 0 reviews
Today work progressed well. Although I'm pretty slow at the best of times.

I cleaned out the bolt hole on the rocker boxes with a tap. There was a lot of sand in the holes from when the were blasted.

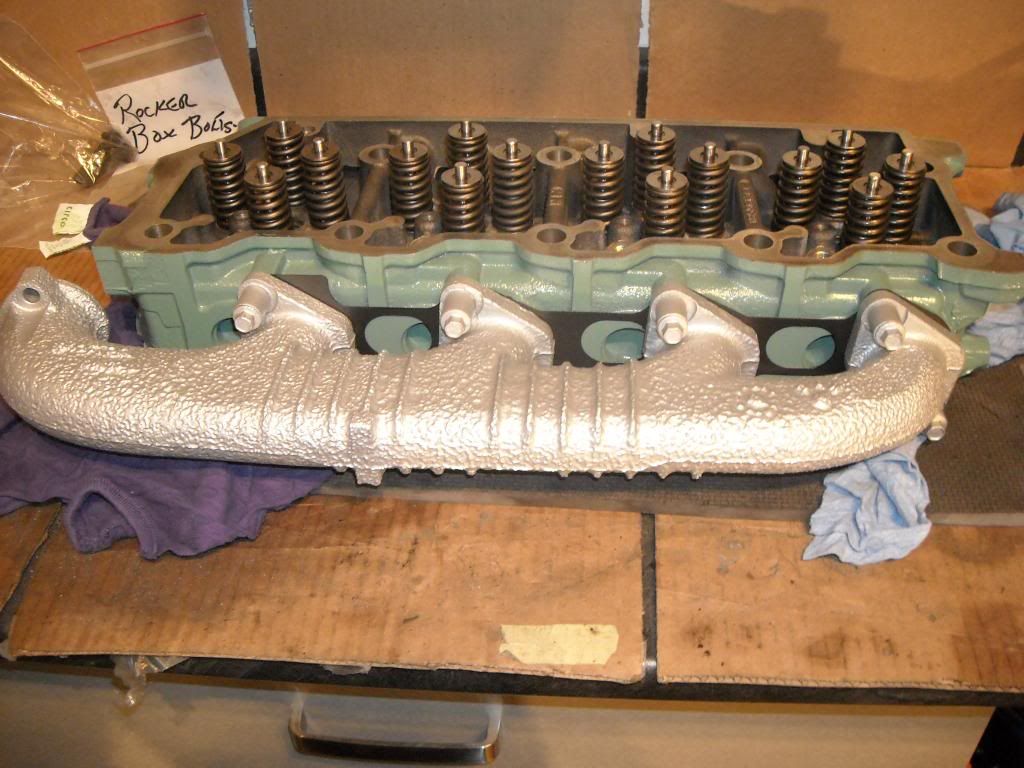

Exhaust manifold installed on the head. I ordered some exhaust gaskets from Tousley Ford on recommendation from the members on the org. Thanks


Rocker box and lifting eye installed, along with my home made lifting bracket.
[IMG]http://i1278.photobucket.com/albums/y502/tom_power1/DSCN1108_zps190c7139.jpg[/url]

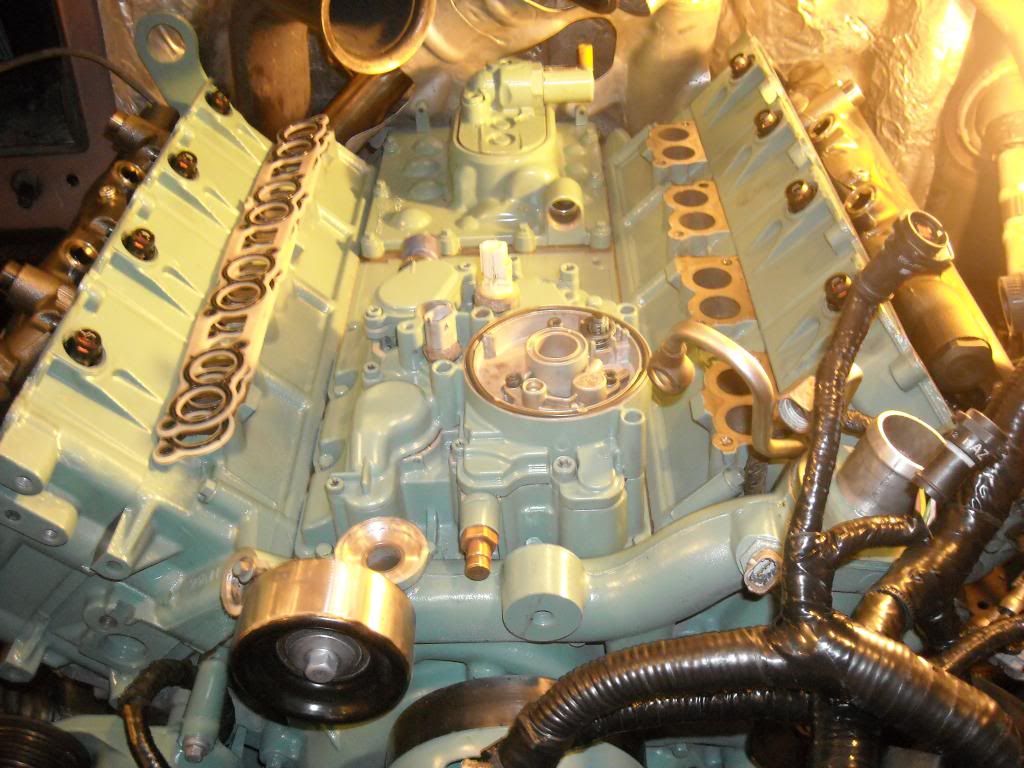

Engine ready to receive head. new OEM head gasket, started is installed, transmission fill tube in place
[url]http://i1278.photobucket.com/albums/y502/tom_power1/DSCN1107_zps6b102512.jpg[/IMG]

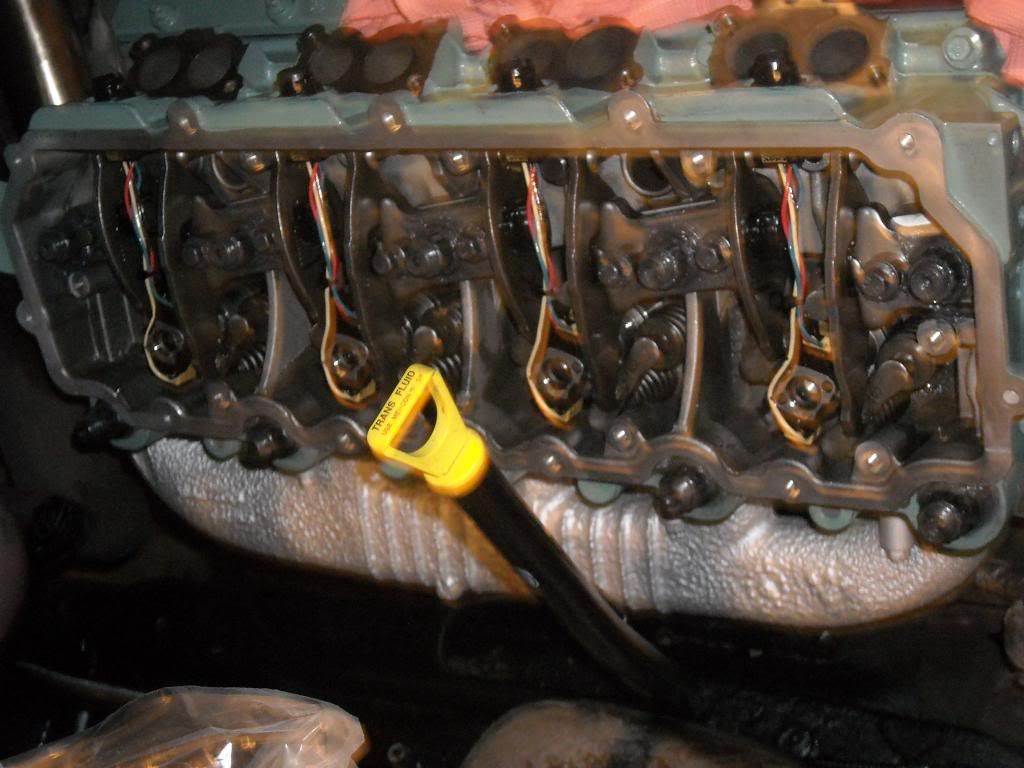

Head installed, ARP studs torqued, fulcrums, pushrods installed, and injectors in place.

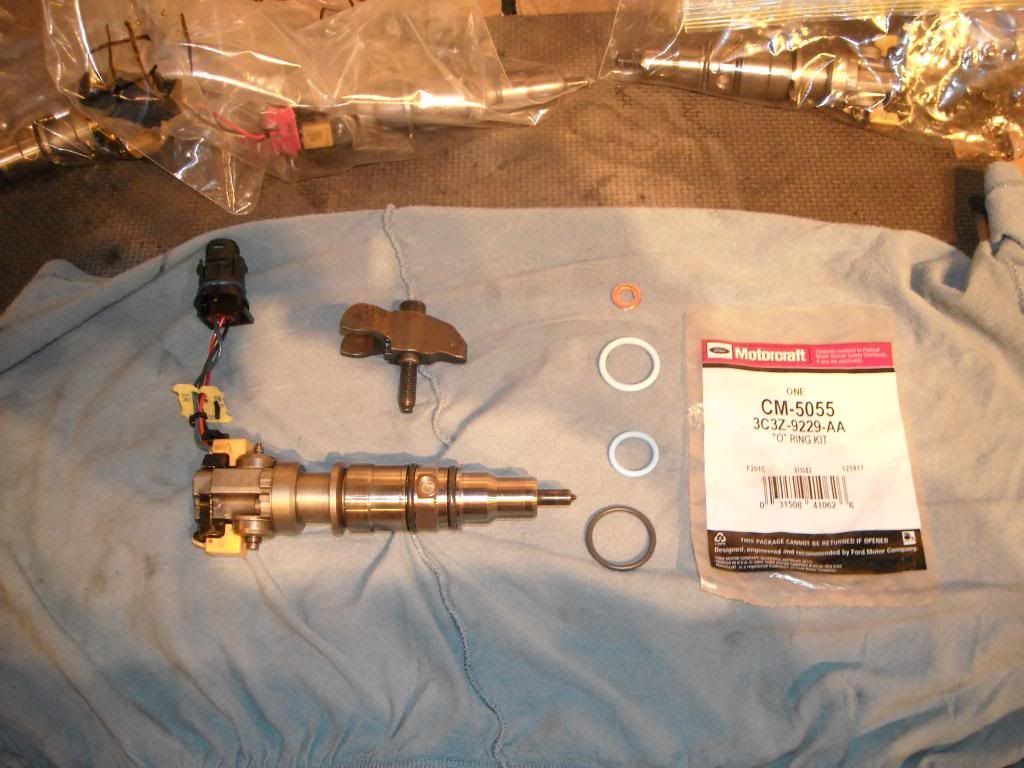

A pic of a new oring kit for the injectors.


Next on the list is the HPOP. Orings removed, ready for new ones.
http://i1278.photobucket.com/albums/...psed4e98de.jpg

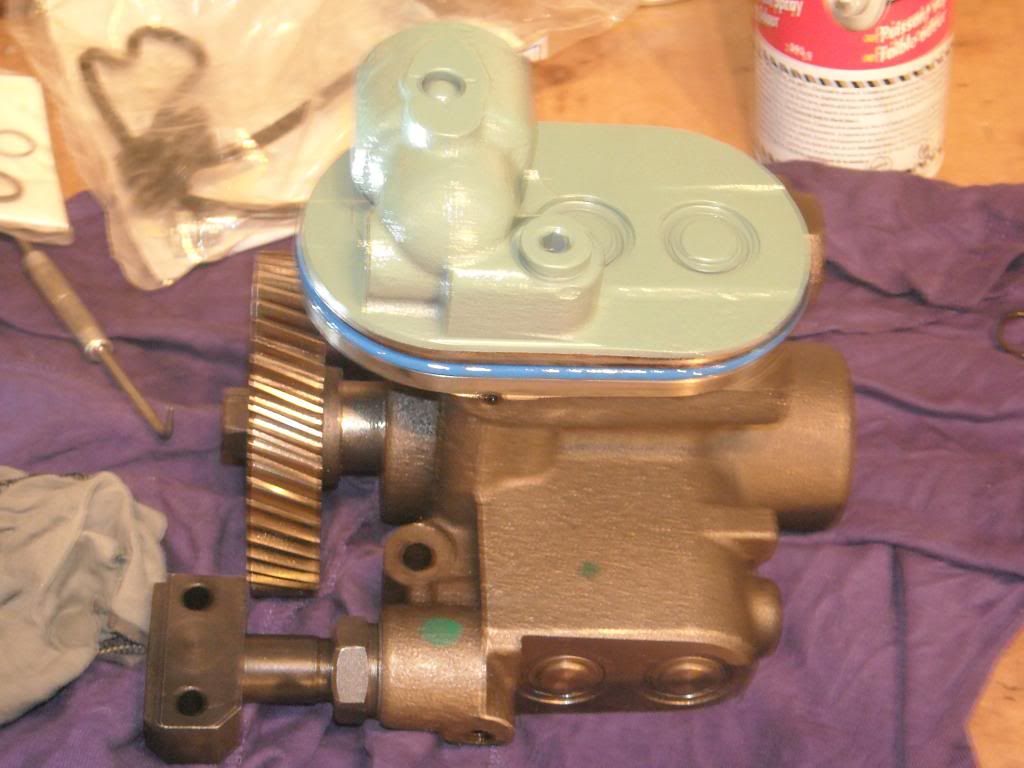

HPOP with new top oring and one piece SCT.


The passenger side was a lot easier than the drivers side. Before I set the drivers head in place I set in place the exhaust pipe that goes from the manifolds to the turbo. I also remover the wipers, cowlings, and a small bracket that the cowling wire bundle sat on. This allowed me a little more room for the hoist chain.


Here is a pic with the new oil cooler and IPR installed, also in place are the oil rails. The updated standpipes are sitting in the rear hole and dummy plugs in the forward hole. they were later torqued down as I needed a 12mm Allen socket to complete the operation.


I left the glow plugs out and was able to turn the engine by hand for about 3/4 of a rotation. It felt like the engine was hitting a brick. I back it up, then went forward to see if I could make it move further. It took about six tries, but I was able to get the motor the rotated. I continued to rotate for about five turns.
My question here is did I hurt a push rod by forcing the engine back and forth by hand. I'm wondering if I should have waited for the lifter to bleed down.
__________________
2006 F-250 SD Lariat,
ARP Studs,
Scan gage II,
Dieselsite coolant filter,
EGR delete,
Scangage2,
one piece STC fitting,
Updated standpipes and dummy plugs,
'03 metal CAC tube,
OEM finned diff cover,
tom135 is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Reply

  Diesel Forum - TheDieselStop.com > 1999-2007 Ford Super Duties > 6.0L Power Stroke Engine and Drivetrain

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Diesel Forum - TheDieselStop.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



Wheel & Tire Center

Powered by vBadvanced CMPS v3.2.3

All times are GMT -5. The time now is 10:55 AM.



Powered by vBulletin® Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.6.0

vBulletin Optimisation provided by vB Optimise (Pro) - vBulletin Mods & Addons Copyright © 2014 DragonByte Technologies Ltd.
