Inexpensive upgrade to 140 amp large case alternator

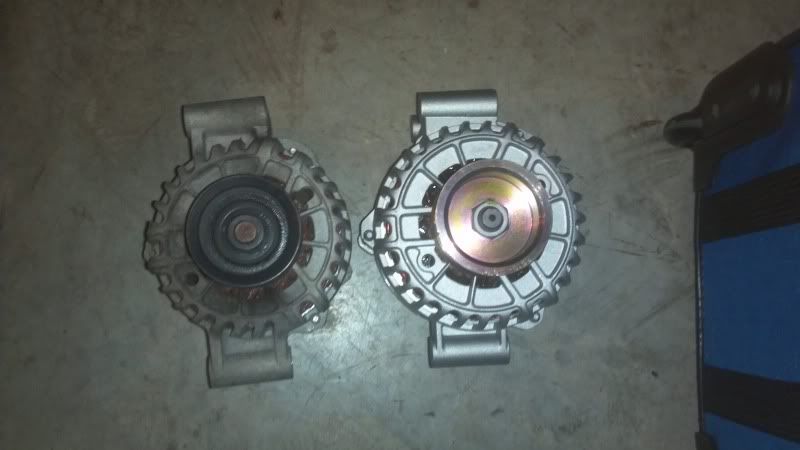

I was in need of a new alternator for my 00 excursion. I wanted to upgrade to the 140 amp alternator but didnt want to give $300 online. I ordered a 140 amp large case alternator from advance auto parts after searching under a 2005 f550 6.0l. Its a rebuilt worlwide unit but comes with a lifetime warranty so if it goes out you get a free replacement. Using coupon code VISA for $50 off $150 got it for $105 plus tax and core. Had it shipped and they accepted my old alternator for the core at my local store. I put it on yesterday and its working fine. The plug is in a different location on the back but there was enough salck in the harness there was no issue, plugged right in. The larger case was hitting the bracket on the bottom so I used a 1/2 lock washer as a spacer under each bolt to gain clearence. So far so good, figured its a good alternative to giving $300 for the larger case 140 amp unit, plus free lifetime replacement is always good.

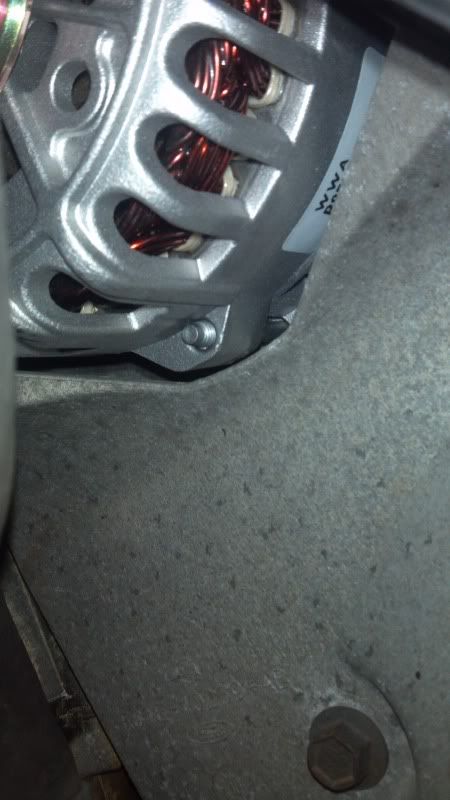

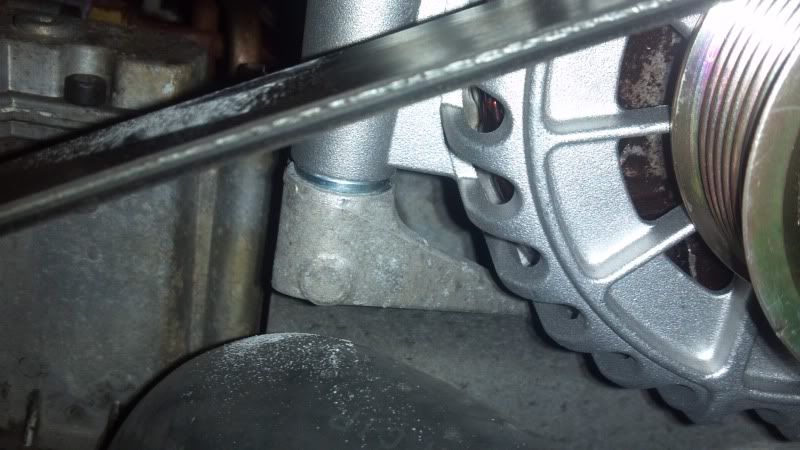

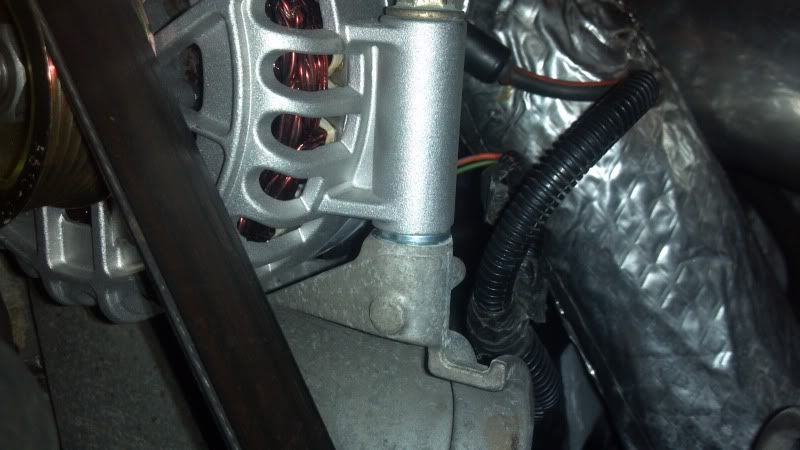

clearance under alternator with spacers

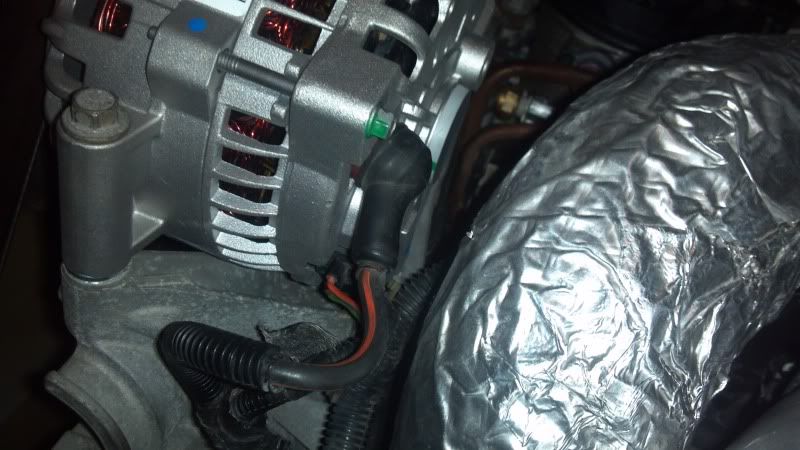

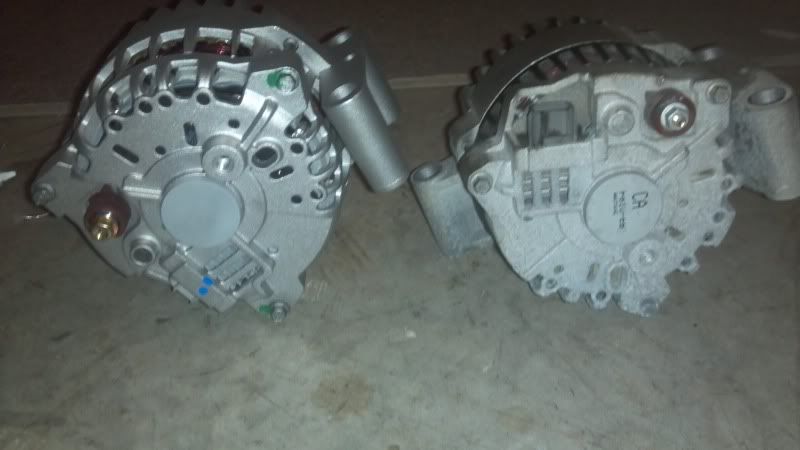

wiring is in different location but plug is identical and works



Last edited by tacurt; 01-14-2012 at 10:21 PM.
tacurt is offline   Quick reply to this message
Sponsored Links
Advertisement

Old 01-14-2012, 11:33 PM   #2 (permalink)
Senior Member

Join Date: Jun 2001
Location: Tulsa Ok
Posts: 9,388
My Photos: (0)
Feedback Score: 0 reviews
I would do three things.....

1. Remove the three frame screws and clock the frames correctly.

2. Replace the pulley with one the same size as the OE alternator.

3. Grind the mounting bracket for clearance.
__________________
2000 F250 Lariat CC SB 4x4 PSD Auto
444-4D is offline   Quick reply to this message
Old 01-15-2012, 07:39 AM   #3 (permalink)
Senior Member

Join Date: Dec 2002
Location: Central Alabama, USA
Posts: 1,981
My Photos: (0)
Feedback Score: 0 reviews
Quote:
Originally Posted by 444-4D View Post
I would do three things.....

1. Remove the three frame screws and clock the frames correctly.

2. Replace the pulley with one the same size as the OE alternator.

3. Grind the mounting bracket for clearance.
tacurt; Nice write up and great with photos. Photos are so much better than a sounds like this, smells like that description. Seems like you made a good mod and saved some money. That warranty is a selling point also.

444-4D - Why would you make the three changes you noted?
__________________
2002 F250 7.3L PSD, bought new now at 202K miles, 4R100 Auto, Crew Cab, Short Bed, ITP Regulated Fuel Return system, ITP head to head SS oil cross over, Hutch in tank mod
Harpoon de tank vent, DIESELSITE Dahl 100 Pre-Pump Fuel Filter, DIESELSITE Return Fuel Line Cooler, DIESELSITE Engine Coolant Filter, DIESELSITE Auxilliary Transmission Cooler, DIESELSITE Gage Package, Pyro, Trans & Boost, Extreme Diesel AD injectors, Ford AIS Air Filter System, BTM straight through muffler, Moog Ball Joints, Rancho Shocks, Rotella ELC Coolant ,Stock Engine Program
Modified for I-Pod Connection
We b playing Scotland The Brave to Jimmy Hendrix
Oneof6 is offline   Quick reply to this message
Old 01-15-2012, 08:33 AM   #4 (permalink)
Senior Member

FMTRVT's Avatar

Join Date: May 2001
Location: Jersey Shore (Not Seaside!)
Posts: 5,259
My Photos: (16)
Feedback Score: 0 reviews
I'm not 444-4D, but I'm bored.

It's normal in the service industry to remove those bolts and turn the back of the alt case to get the terminals lined up to the stock position as to not stress the wiring. Even if the wire attachments fit it's just a better practice to set the alternator where they should be.

It's hard to tell in that picture due to the differences in design if those pulleys are the same diameter. There are a lot of situations where we find a higher output pulley being smaller in diameter to achieve higher outputs. In this case I thought the pulley looked bigger, slowing the alternator rpms and therefore lower amps at low speeds.

I manipulated the photo and I'm not sure if the size is different (see below).

Me, I wouldn't have a problem using flat washers as spacers, but I would not care for split washers being used. -4D may be trying to get back to the stock position, but I'll let him explain his reasoning.
Attached Thumbnails
Inexpensive upgrade to 140 amp large case alternator-alt.jpg
__________________
Jack
Former Vehicle Test Manager - Friction Products
03 F350SC 4x4 6.0 Auto 5/30/03

Truck Pictorials on Facebook. Google - Facebook TooManyToys

Step Lights;Painted Flanges; Bypass Oil Filter; Heated Mirror Switch; Reverse Lights; 7.3L Fuel Reg Shim; 6 Disc Radio Speed Volume Mod; Coolant Filter, etc.
FMTRVT is online now   Quick reply to this message
Old 01-15-2012, 09:03 AM   #5 (permalink)
Senior Member

Join Date: Dec 2002
Location: Central Alabama, USA
Posts: 1,981
My Photos: (0)
Feedback Score: 0 reviews
FMTRVT; I can see what is meant by clocking it now, thanks. Does that change any internal adjustment significantly like the rotor to stator air gap? I have never clocked one like that but now can see why if might be done to align the wiring.

I also can't tell from the photo if the old and new pulleys are the same OS diameter. I would be more worried about putting a smaller one on and speeding it up at all engine speeds. If the new alternator is rated for X then there is no reason to believe it needs more speed and achieve a 1X multiple, that might even be a problem.

Washers as shims and spacers, pretty common. I also wouldn't use a split or lock washer. Lock washers are the fastener industries joke on us anyway. If it is loose it's loose and a lock washer won't tighten up anything. They often break, so I throw them away and torque bolts and use the correct grade and thickness of flat washer.

That height issue might be important, probably not, wonder what it did to the belt tensioner position.
__________________
2002 F250 7.3L PSD, bought new now at 202K miles, 4R100 Auto, Crew Cab, Short Bed, ITP Regulated Fuel Return system, ITP head to head SS oil cross over, Hutch in tank mod
Harpoon de tank vent, DIESELSITE Dahl 100 Pre-Pump Fuel Filter, DIESELSITE Return Fuel Line Cooler, DIESELSITE Engine Coolant Filter, DIESELSITE Auxilliary Transmission Cooler, DIESELSITE Gage Package, Pyro, Trans & Boost, Extreme Diesel AD injectors, Ford AIS Air Filter System, BTM straight through muffler, Moog Ball Joints, Rancho Shocks, Rotella ELC Coolant ,Stock Engine Program
Modified for I-Pod Connection
We b playing Scotland The Brave to Jimmy Hendrix
Oneof6 is offline   Quick reply to this message
Old 01-15-2012, 10:47 AM   #6 (permalink)
Senior Member

Join Date: Jun 2001
Location: Tulsa Ok
Posts: 9,388
My Photos: (0)
Feedback Score: 0 reviews
Quote:
Originally Posted by Oneof6 View Post
444-4D - Why would you make the three changes you noted?
1. Stuff always fits better if it is configured correctly.

2. His OE pulley is probably 5mm smaller than the replacement alternator. If his desire is a higher output alternator, using the OE pulley will help him out.

3. So it won't look like some hack has been under the hood.

BTW, I installed large case 6g alternators on my truck a couple of years ago.
__________________
2000 F250 Lariat CC SB 4x4 PSD Auto
444-4D is offline   Quick reply to this message
Old 01-15-2012, 10:55 AM   #7 (permalink)
Junior Member

Join Date: Feb 2010
Posts: 11
My Photos: (0)
Feedback Score: 0 reviews
I agree with using a regular washer instead of the lock washer, I went with what I had on hand that was the size I needed and will probably replace them at some point. As you can see there is no stress on any of the wiring and would be afraid pf screwing something up if I removed the back of the case. Weight the options, leave it as it is and the wiring is fine, remove the back and risk screwing something up just to place the wires in the stock position. Doesnt seem worth the risk. If there was any difference in the pullies it was very small. I had no problem getting the belt back on. I just thought I would share this with anyone needing an alternator. I know some people wont like the idea of but some might.
tacurt is offline   Quick reply to this message
Old 01-15-2012, 11:00 AM   #8 (permalink)
Senior Member

Join Date: Jun 2001
Location: Tulsa Ok
Posts: 9,388
My Photos: (0)
Feedback Score: 0 reviews
On that alternator you wouldn't remove the back frame. You would remove the pulley, remove the three frame screws, slip the front frame forward and turn it.
__________________
2000 F250 Lariat CC SB 4x4 PSD Auto
444-4D is offline   Quick reply to this message
Old 01-15-2012, 11:06 AM   #9 (permalink)
Senior Member

FMTRVT's Avatar

Join Date: May 2001
Location: Jersey Shore (Not Seaside!)
Posts: 5,259
My Photos: (16)
Feedback Score: 0 reviews
Oneof6,

Clocking doesn't change any internal specs. You can also think of it as keeping the back of the case with the electronics in one position and clocking the main part of the case. A normal procedure for 50 years.

The split lock washers aren't there to provide spring pressure, but the raised "tooth" is supposed to bite into the nut and the base material to prevent it from turning or backing off. They do work well when they are made correctly which you can see after removal as they would have shaved off nut or parent material during the removal. But there are so many out there that are not heat treated correctly, made of the correct material, or the split is made not at the proper angle or edge to provide good bite.

There are much better modern methods, but I think they have their purpose in applications were bolt stretch cannot be achieved long term (wood; tube bolt through connections, etc) and it's not expected that the consumer would have access to or desire to work with nylon lock nuts or interference nuts, and just get the barbecue built. Although they have a long history and if you work on vehicles from the 50's and earlier you can even find them on main cap bolts.

I think the tensioner is fine with the 3/16" rise.
__________________
Jack
Former Vehicle Test Manager - Friction Products
03 F350SC 4x4 6.0 Auto 5/30/03

Truck Pictorials on Facebook. Google - Facebook TooManyToys

Step Lights;Painted Flanges; Bypass Oil Filter; Heated Mirror Switch; Reverse Lights; 7.3L Fuel Reg Shim; 6 Disc Radio Speed Volume Mod; Coolant Filter, etc.

Last edited by FMTRVT; 01-15-2012 at 11:16 AM.
FMTRVT is online now   Quick reply to this message
Old 01-15-2012, 11:13 AM   #10 (permalink)
Senior Member

FMTRVT's Avatar

Join Date: May 2001
Location: Jersey Shore (Not Seaside!)
Posts: 5,259
My Photos: (16)
Feedback Score: 0 reviews
tacurt,

If you've never clocked an alt I can understand your concern. The thing to do is keep the armature against the back case and rotate the front case for a better description.

Good post on what you found and understand what / why you did what you did - not knocking you down. We are just trying to share our years of experience and what mechanics would do.
__________________
Jack
Former Vehicle Test Manager - Friction Products
03 F350SC 4x4 6.0 Auto 5/30/03

Truck Pictorials on Facebook. Google - Facebook TooManyToys

Step Lights;Painted Flanges; Bypass Oil Filter; Heated Mirror Switch; Reverse Lights; 7.3L Fuel Reg Shim; 6 Disc Radio Speed Volume Mod; Coolant Filter, etc.
FMTRVT is online now   Quick reply to this message
Old 01-15-2012, 11:56 AM   #11 (permalink)
Senior Member

Join Date: Jun 2001
Location: Tulsa Ok
Posts: 9,388
My Photos: (0)
Feedback Score: 0 reviews
Quote:
Originally Posted by FMTRVT View Post
The thing to do is keep the armature against the back case and rotate the front case for a better description.
Keeping the rotor against the back of the case is easy on a 6g alternator. Unlike many of the old alternators that would fall apart, it almost takes Divine Intervention to get the rear bearing out of the tolerance ring.
__________________
2000 F250 Lariat CC SB 4x4 PSD Auto
444-4D is offline   Quick reply to this message
Old 01-15-2012, 01:32 PM   #12 (permalink)
Senior Member

FMTRVT's Avatar

Join Date: May 2001
Location: Jersey Shore (Not Seaside!)
Posts: 5,259
My Photos: (16)
Feedback Score: 0 reviews
Haven't actually played with a 6G, just a whole lot of 40amp 65-66 Mustangs.
__________________
Jack
Former Vehicle Test Manager - Friction Products
03 F350SC 4x4 6.0 Auto 5/30/03

Truck Pictorials on Facebook. Google - Facebook TooManyToys

Step Lights;Painted Flanges; Bypass Oil Filter; Heated Mirror Switch; Reverse Lights; 7.3L Fuel Reg Shim; 6 Disc Radio Speed Volume Mod; Coolant Filter, etc.
FMTRVT is online now   Quick reply to this message
Old 01-19-2012, 06:13 PM   #13 (permalink)
Senior Member

Join Date: Nov 2010
Location: Kernersville, NC
Posts: 800
My Photos: (0)
Feedback Score: 0 reviews
I did the same think a month or so back. I used a NAPA unit, item #RAY 133169. It too was rated at 140 amps, but I didn't notice any contact between the housing, the connections were slightly different locations, but only slightly, and I didn't bother to check the pulley.
__________________
2002 F-250 CCLB 4x4 XLT, 7.3, ZF-6 with Midwest Short-throw shifter, ESOF, 3.73 R&P, HPx line, FRx, Racor prefilter before pump.
txgp17 is offline   Quick reply to this message
Old 01-25-2012, 12:11 PM   #14 (permalink)
Senior Member

Join Date: May 2006
Location: Ames, IA
Posts: 311
My Photos: (3)
Feedback Score: 0 reviews
I just got my alternator in - ordered from advanced auto online as well. I swapped the pulleys and used lock washers on mine as well - not for the lock washer reason, just as spacers to clear the bracket. Clocking the alternator was simple, just pop off the pulley and rotate the front as mentioned earlier in the thread.

Pics!






__________________
'02 F250 7.3 CC/SB, 301k, 4x4, Auto. 17k on 100% WMO

Boost, EGT, Fuel Pressure Gauges, 4" Magnaflow Exhaust, Plugged Return, 75PSI Fass, MB Quart 480 Amp, MB Quart PVI216 Coaxials F&R, Alpine Amp, RF 10" Sub

Dual Fuel Systems with check valves, 85 Gallon Aux Tank, 75PSI Fass, 30 Plate FPHE, 10u Spin on filter.
toddman35 is offline   Quick reply to this message
Old 01-25-2012, 12:20 PM   #15 (permalink)
Senior Member

FMTRVT's Avatar

Join Date: May 2001
Location: Jersey Shore (Not Seaside!)
Posts: 5,259
My Photos: (16)
Feedback Score: 0 reviews
Thanks for measuring that.

So Ed was right, they reduce the alternator rpms by 7.3% with the new pulley.
__________________
Jack
Former Vehicle Test Manager - Friction Products
03 F350SC 4x4 6.0 Auto 5/30/03

Truck Pictorials on Facebook. Google - Facebook TooManyToys

Step Lights;Painted Flanges; Bypass Oil Filter; Heated Mirror Switch; Reverse Lights; 7.3L Fuel Reg Shim; 6 Disc Radio Speed Volume Mod; Coolant Filter, etc.
FMTRVT is online now   Quick reply to this message
Sponsored Links
Advertisement
